Ksolare Solar Inverters

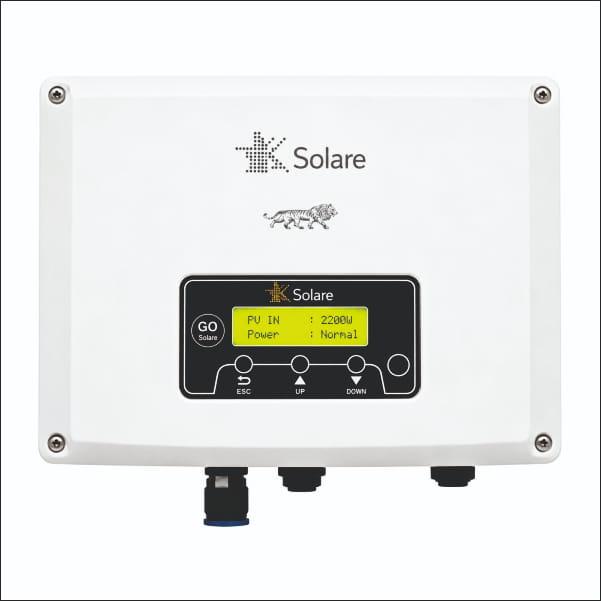

• The 5G-PRO+ Single Phase (1–6kW) is a transformerless residential grid-tie inverter operating at 230V, 50/60Hz, with max 550V DC input and 70–550V MPPT range.
• Featuring single MPPT and single-string design (no Y-connector required), it delivers up to 98% efficiency, <3% THDi, and adjustable power factor (0.8 leading to 0.8 lagging).
• Integrated anti-islanding, residual current monitoring, insulation detection, over-voltage and SPD protection ensure safety. Built with MC4 connectors, LED-LCD display, WiFi/RS485 communication,
•  IP65 enclosure, natural cooling, and -25°C to +60°C operation, it provides reliable long-term performance with an 8-year warranty.

• The 5G-PRO+ Three Phase (3–10kW) inverter is designed for commercial and industrial systems, supporting 380/400/415V grids with max 1000V DC input and 200–1000V MPPT range.
•  It achieves up to 98% efficiency, <3% THDi, and adjustable power factor (0.8 leading to 0.8 lagging) for stable grid integration.
• Equipped with single MPPT, inbuilt DC switch, smart fan cooling, anti-islanding, residual current monitoring, insulation detection, and surge protection.
• Featuring MC4 connectors, LED-LCD display, WiFi/RS485 communication, IP65 protection, and an 8-year warranty, it ensures durable outdoor C&I operation.

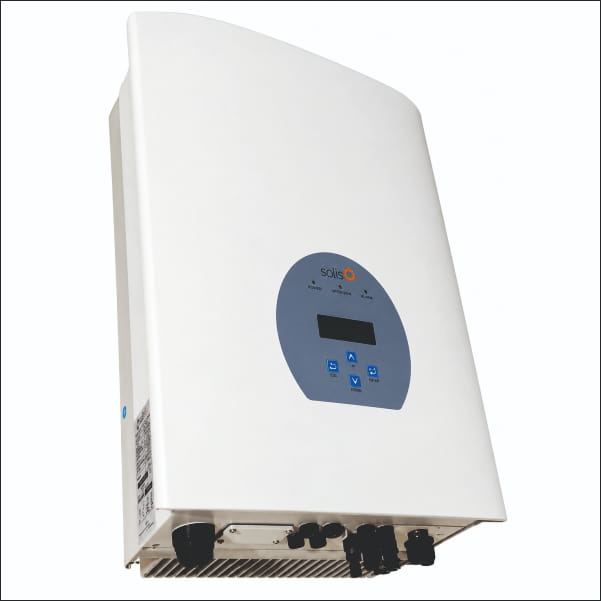

• High-efficiency three-phase inverter for commercial rooftop systems with multi-MPPT design and wide DC voltage range, compatible with high-power PV modules.
• Provides stable three-phase output with low THD and adjustable power factor.
• Equipped with DC switch, Type II DC/AC SPD, anti-islanding, leakage current protection, and grid monitoring.
•  IP65 wall-mounted design with natural/smart cooling and remote monitoring ensures reliable C&I performance.

• 1000V DC three-phase inverter series with multi-MPPT architecture, high DC input current support, and optimized energy yield for medium-scale C&I plants.
• Delivers high efficiency, low harmonic distortion, and stable output.
• Includes DC switch, Type II DC/AC surge protection, comprehensive grid compliance, and advanced safety features.
• IP65 enclosure with anti-corrosion protection, smart forced-air cooling, and intelligent remote O&M capability.

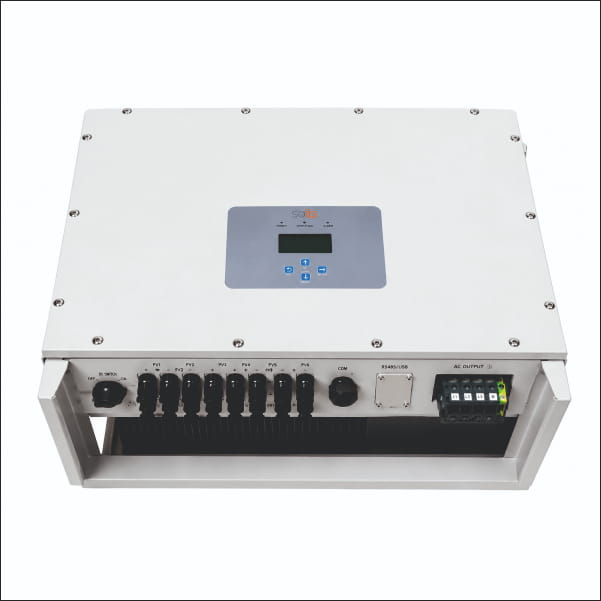

• High power-density three-phase inverter range for large commercial and industrial plants, featuring advanced multi-MPPT configuration and wide DC operating range.
• Supports high DC input current and large PV arrays with superior conversion efficiency.
• Includes DC/AC surge protection, AFCI (optional), string monitoring, PID recovery, and full grid-support functions. Built with IP65/IP66 protection, anti-corrosion coating, smart forced-air cooling, and advanced remote monitoring for utility-scale reliability.

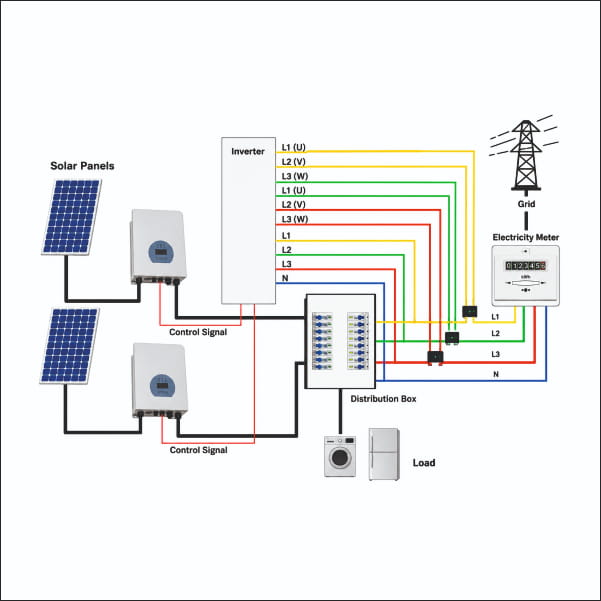

Key Features

• Prevents export of excess power to the utility grid
• Continuously monitors grid voltage and load current
• Uses CT sensors for accurate power measurement
• Dynamically regulates inverter output
• Supports Minimum Mode (zero export per phase)
• Supports Average Mode (total load-based control)

System Components

• Limiter unit included
• CT sensors provided for monitoring
• Control interface for smooth system communication
• Designed for precise power balancing
• Supports safe and reliable three-phase operation

Key Highlights

• Accurate power control
• Grid compliance ensured
• Enhanced system safety
• Optimized energy management
• Reliable performance for solar systems
•  Ideal for three-phase solar installations
